Chocolate moulding line
Short Description:
Description
The chocolate molding line has all function of pre-heating ,empty mould,
depositing chocolate into mould ,vibrating chocolate in mould ,cooling chocolate in mould ,de-demoulding chocolate form mould and conveying chocolate. 2.In this semi-automatic chocolate molding line ,you can produce following types of chocolates :pure chocoalte /center filling chocolate/two color chocolate(left&right color) / nuts mixed chocolate /wafer chocolate (wafer inserter unit required)。
Features:
1.The chocolate moulding line is full automatic PLC control with touch screen.
2.The chocolate line has complete system including mould baking,depositing/moulding,vibrating,cooling,de-moulding,conveying.
3.Chocolate sizes change as per moulds.

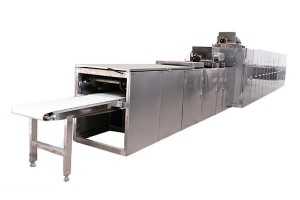

Product detail pictures:
| Model | 340(One shot) | 340(Two shots) |
| Capacity | 100-300kg/h | 100-300kg/h |
| Total power | 25kw | 25kw |
| Refrigeration capacity | 21800kcal/h | 21800kcal/h |
| Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Mould size | 225x340x30mm | 225x340x30mm |
| Mould quantity | 320pcs | 370pcs |
| Mould Depositing Speed | 10-12pcs/min | 10-12pcs/min |
| Weight | 4850KG | 5050KG |
| Dimension | 17500x1020x1880mm | 19500x1020x1880mm |
