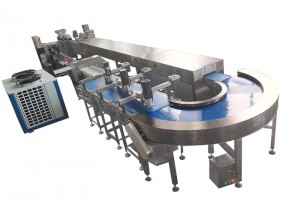

Protein bar production line
Short Description:
Protein bar production line to reduce manual contact with products and form a fully automatic production line!
It can make 1 line, 2 line, 3 line or 6 line at one time, so it not only suitable for small capacity business use, but also can use in big capacity business. Comparing with other extruder machine, it is with smaller size but more efficiency. It’s very suitable for making bars like energy bar, nuts bar, date bar, protein bar, coconuts bar, fig bar, fruit bar and so on. etc. You deserve it!
Papa Machinery Equipment Co.,LTD. is a manufacturer of Small Output Chocolate Coating date Bar Production Line with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Food Industry.
Small Output Chocolate Coating date Bar Production Line:
The Horizontal Protein Bar Extruder is our newly designed machine according to customers’requirement of smaller size and low budget.the machine can make protein bar,nutrition bar,power bar and so on.
What is the working principle of the protein bar making machine?
Unlike sheeting, cutting or molding, the protein bar making machine uses an extrusion process and is equipped with a custom nozzle to shape the protein bars: First, the pre-mixed dough is fed into a hopper, which is equipped with two horizontal spiral rollers to convey the dough and a push roller to push the dough down. Second, the dough enters a rectifier, which evenly distributes the dough to the custom nozzle. Third, a custom nozzle with customized size and shape is customized according to customer requirements. Fourth, a row of protein bars is fed into a conveyor belt with a safety guard, and a pneumatic cutter controlled by an air compressor cuts the protein bars into uniform sizes.
Product detail pictures:
| Model | P307-1 |
| Output | 10-60pcs/min |
| Product weight | 10-250g |
| Power | 0.5kw |
| Voltage | 220V/380V |
| Dimension | 5500*2000*1680mm |
| Weight | 4500kg |
